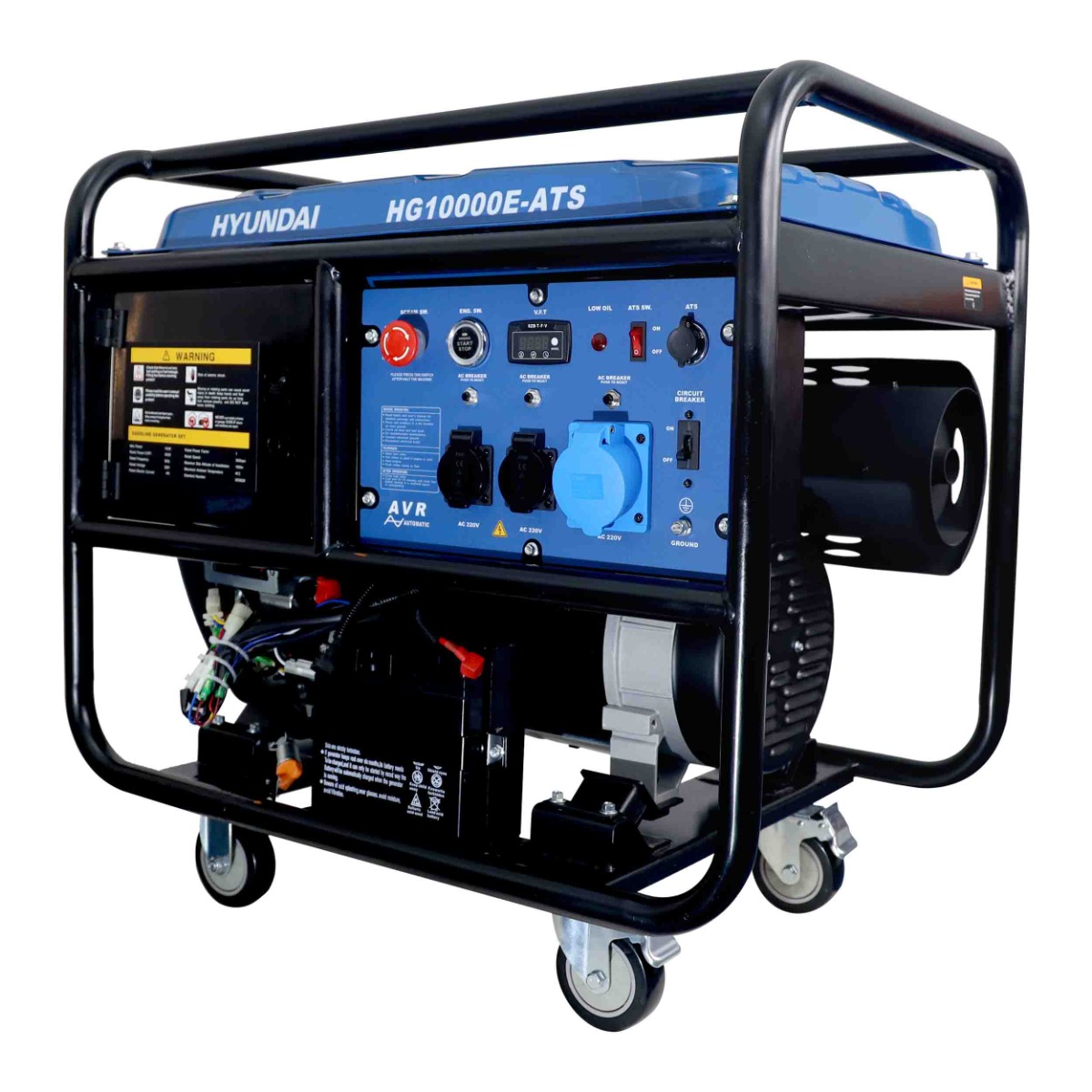

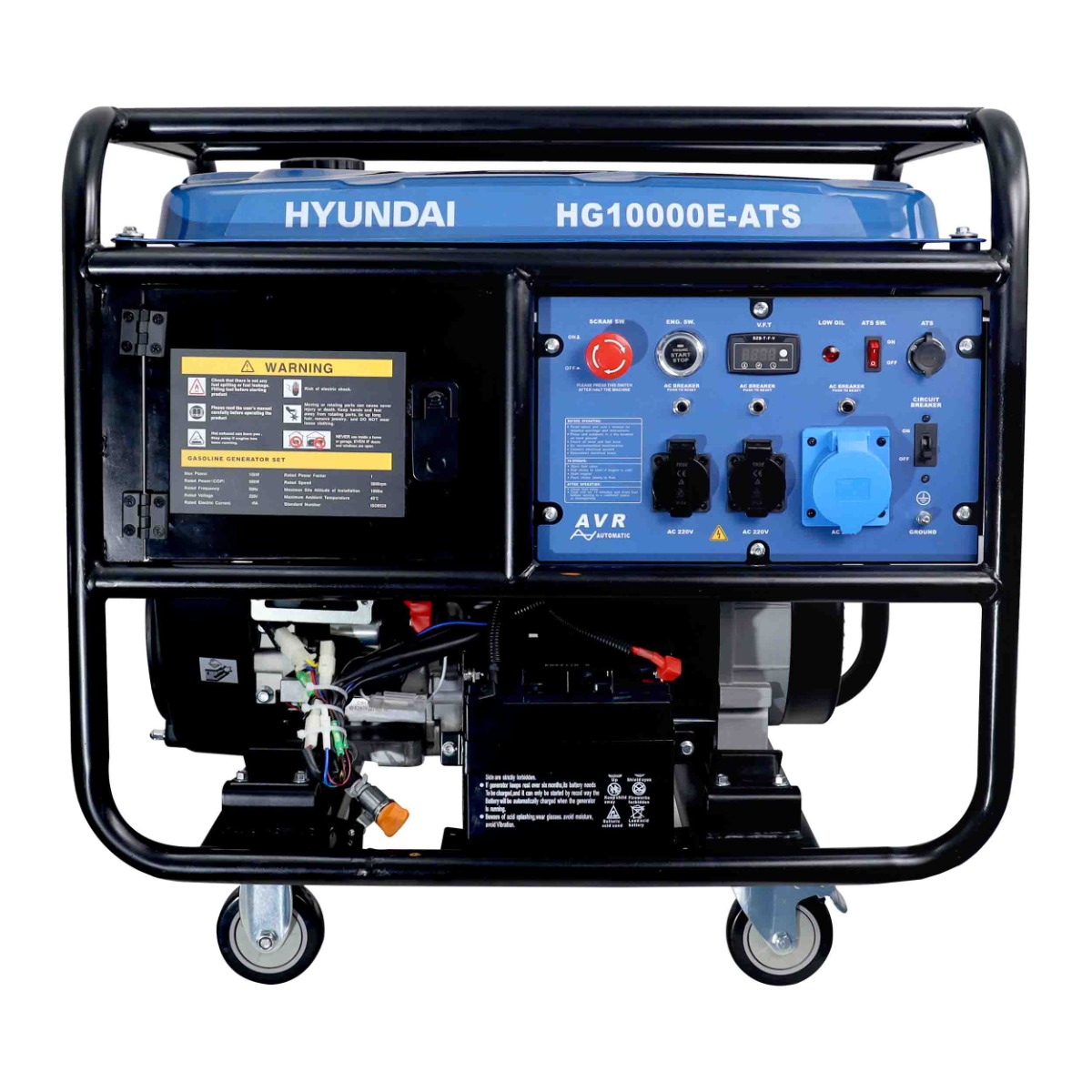

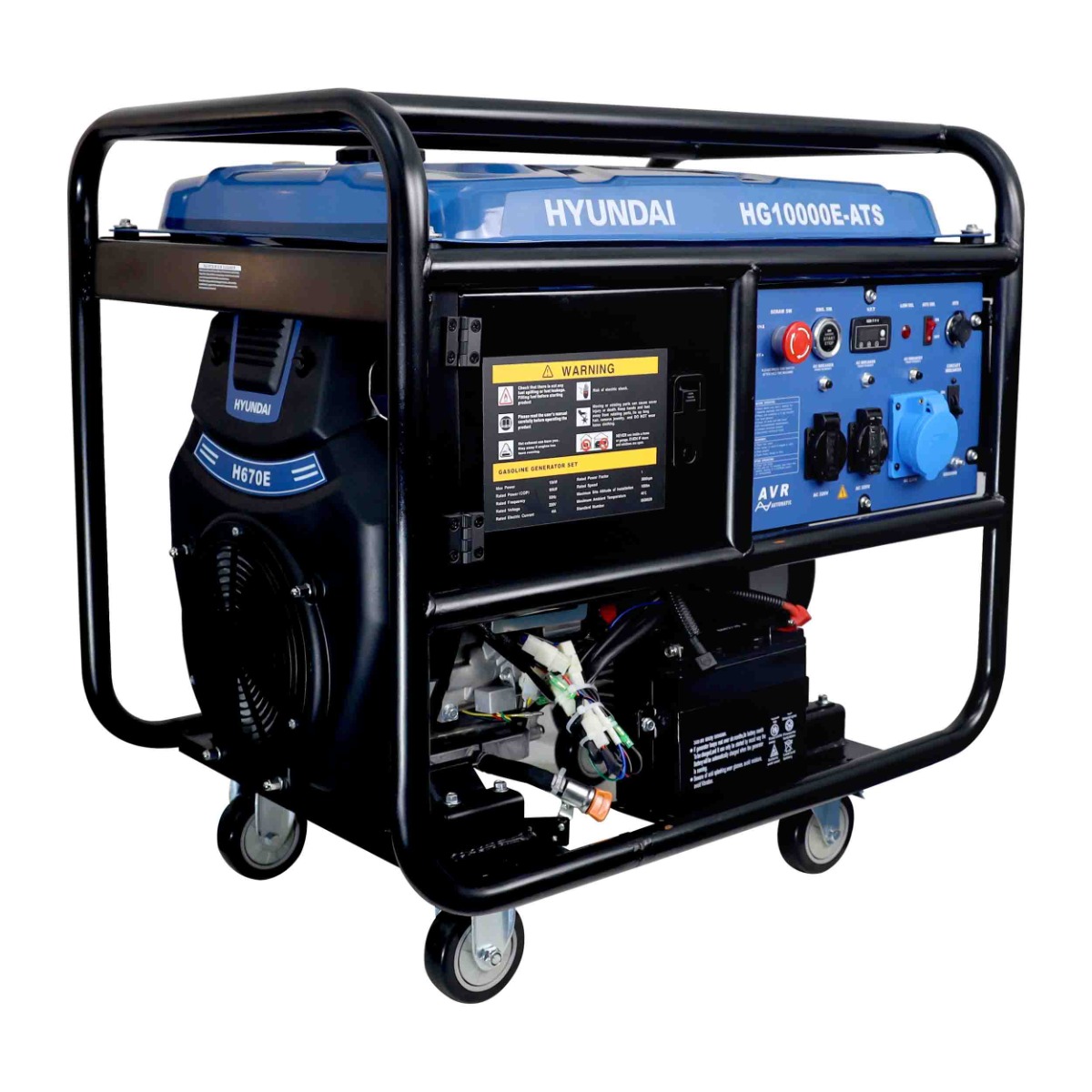

Technical Specification of HYUNDAI HG10000E-ATS 10 KW Gasoline Generator:
General Data:
| Model | HG10000E-ATS |
| Brand | Hyundai |
| Rated Power | 9.0 KVA/ 9.0KW |
| Max. Power | 10 kVA/ 10KW |
| Volts | 220V |
| Frequency | 50HZ |
| Engine RPM | 3000 |
| Power Factor | 1 |
| Max. output (Ampere) | 45.45 A |
| Starting System | One button start & Electric |
| Country of Origin | Korea |
| Country of Manufacture | China |
Engine General Data:
| Engine Brand | HYUNDAI |
| Model | H670 |
| Fuel | Petrol/ Octane |
| Fuel Tank Capacity | 36L |
| Cooling System | Air Cooled |
| Displacement/HP | 669ml/ 22HP |
| Ignition System | Transistorized magento |
| Engine Oil Capacity | 1.6L |
| Lube Oil Grade | SJ 10W-30 |
Alternator General Data:
| Brand | HYUNDAI |
| Alternator | HYUNDAI |
| Th. Class | F |
| Output Frequency Wrap | ±5% |
| Output Voltage Wrap | ±2% |
Dimension and Noise Level:
| Length | 820 mm |
| Width | 595 mm |
| Height | 682 mm |
| Weight | 150 KG |
| Sound From 7 m (dBA) 1/4 load | 74 |
Fuel Consumption:
| % of Load | Petrol/Octane |
| 100% Load | 4.0 L/H |
| 75% Load | 3.0 L/H |
| 50% Load | 2.0 L/H |
| Continuous Duration of Runs @50% Load | 5.5 H |
| Continuous Duration of Runs @100% Load | 10H |
Warranty and Installation:
1 Year Warranty.
Installation Charge: Free.
Notes: Cable & other accessories costs will bear by the buyer.
