Technical Specification:
General Data:

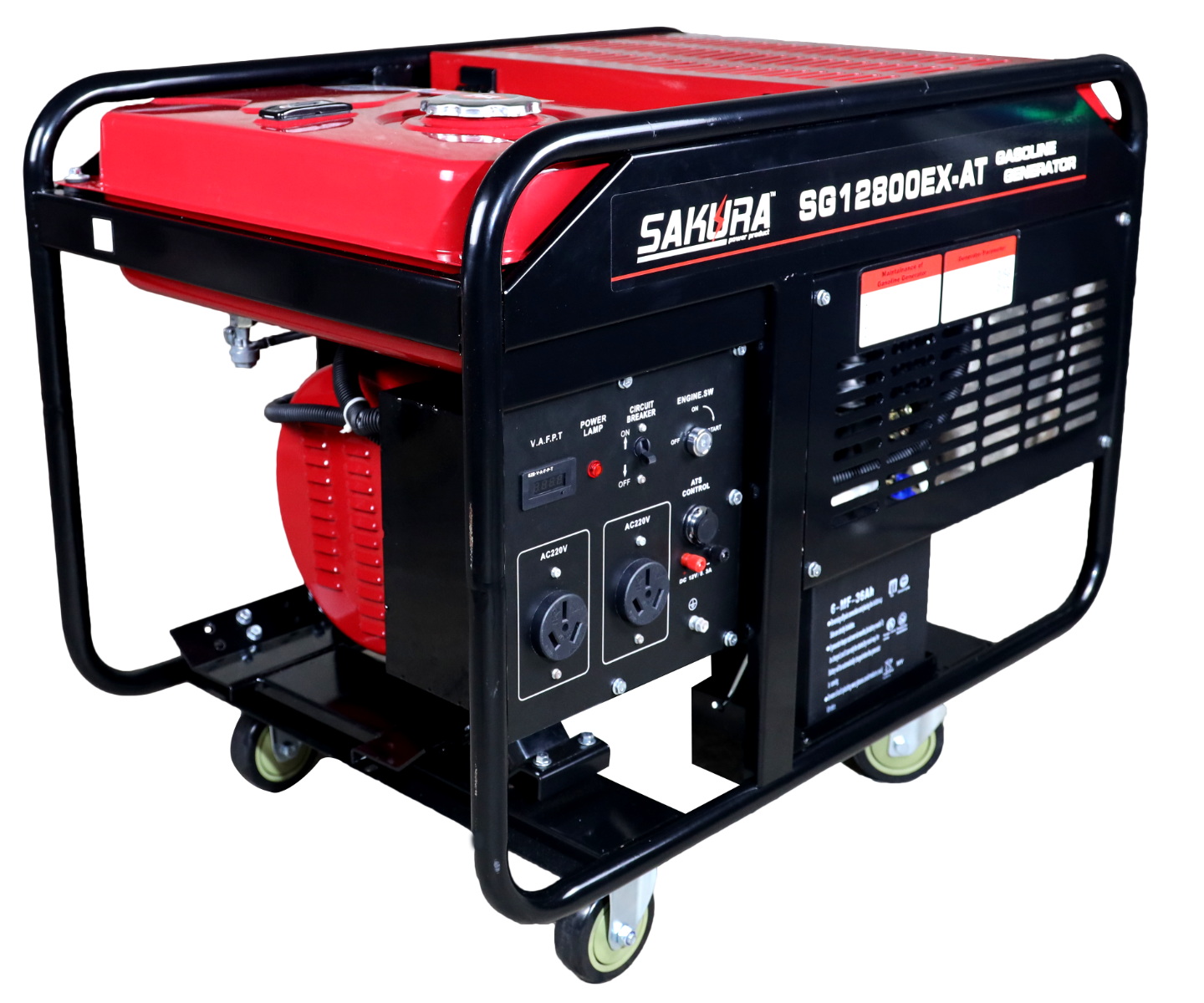

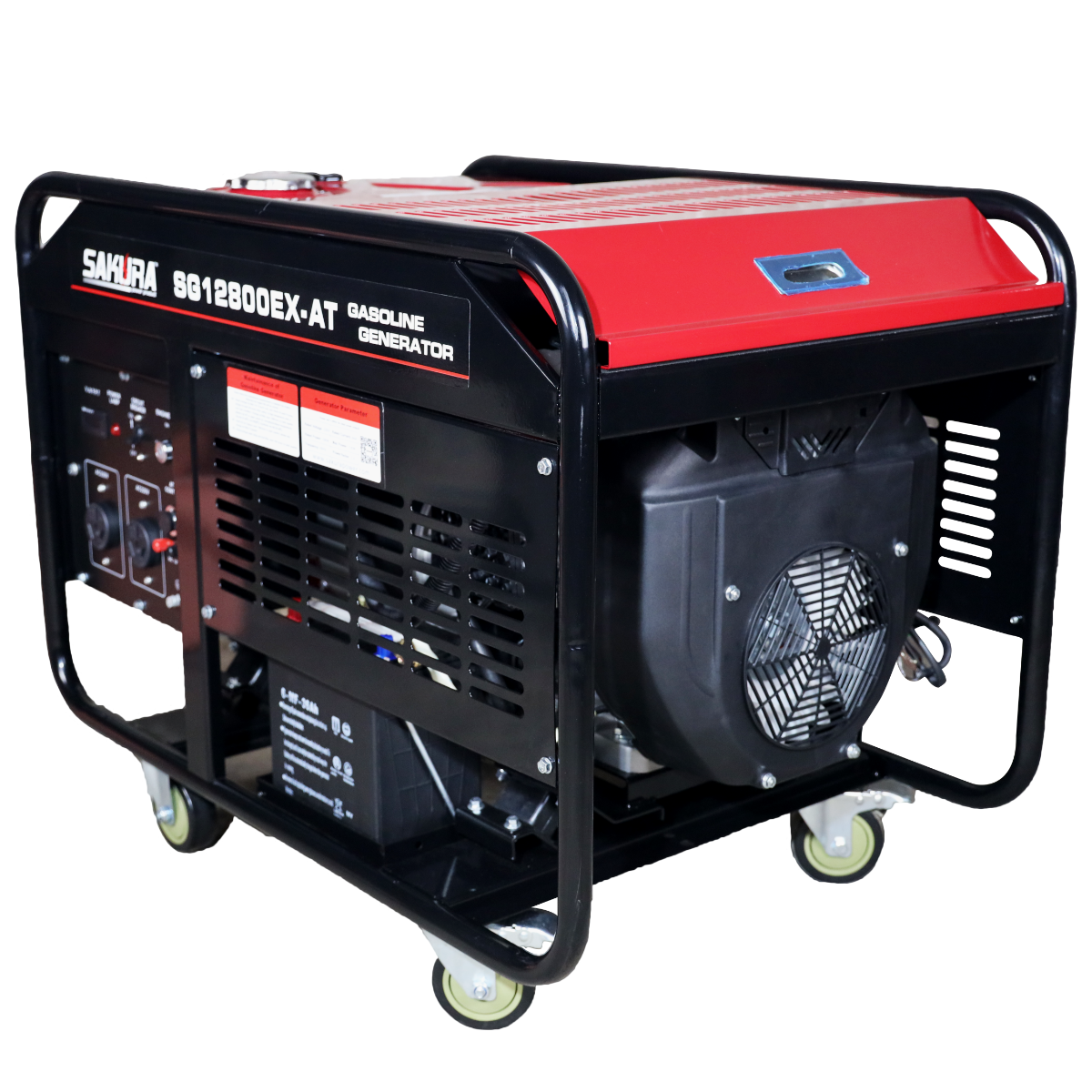

| Model | SG12800EX-AT |
| Brand | Sakura |
| Rated Power | 10.0 KVA/10.0KW |
| Max. Power | 11.0 kVA/11.0KW |
| Volts | 220V |
| Frequency | 50HZ |
| Engine RPM | 3600 |
| Power Factor | 1 |
| Max. output (Ampere) | 50A |

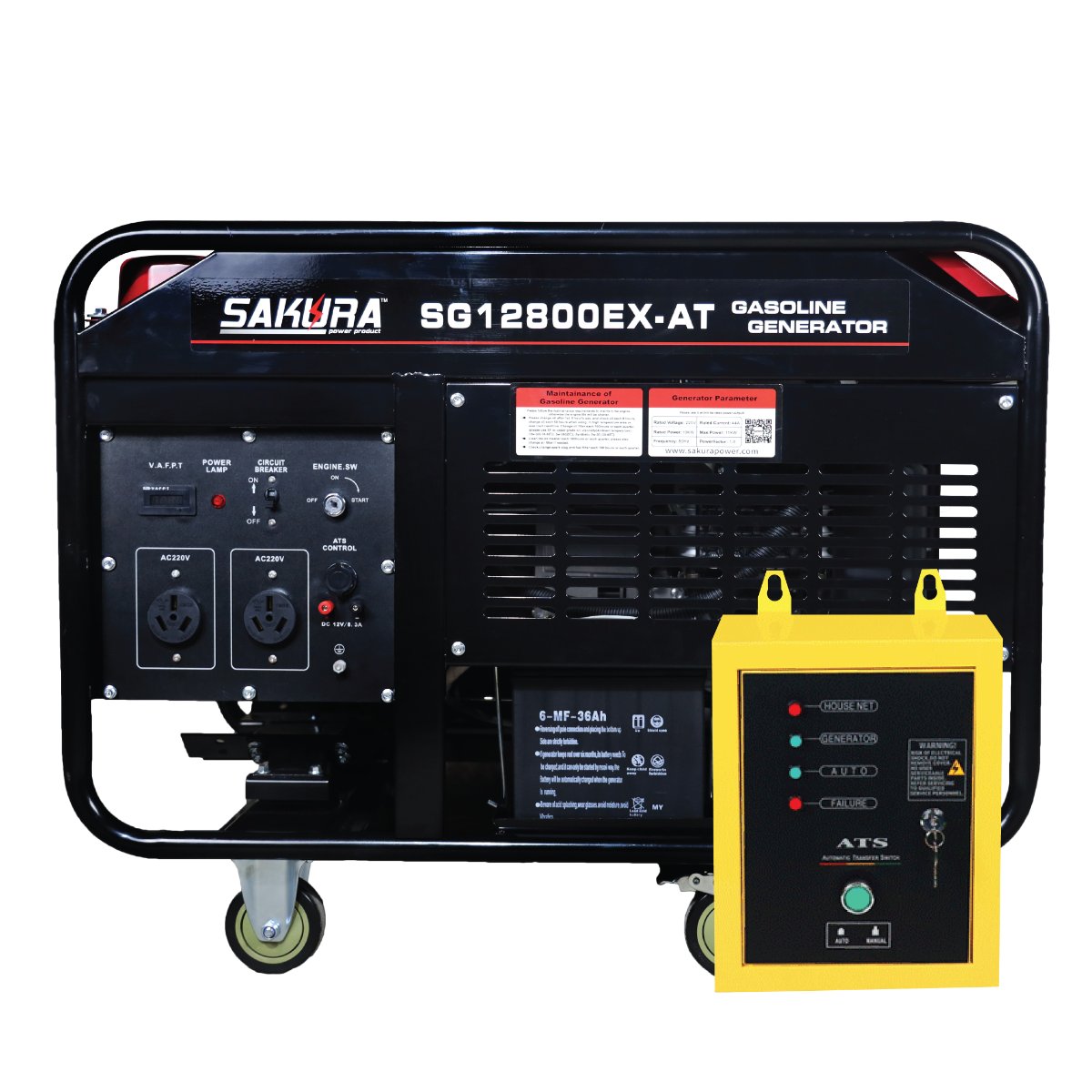

| Starting System | Auto Start with ATS, Electric |
| Country of Made | China |
Engine General Data:
| Engine Brand | Sakura |
| Model | KB2V78 |
| Fuel | Petrol/Octane |
| Fuel Tank Capacity | 30L |
| Cooling System | Air Cooled |
| Displacement | 688cc |
| Ignition System | Non Contact |
| Engine Oil Capacity | 1.0L |
| Lube Oil Grade | SAE 20W-50 |
Alternator General Data:
| Brand | Sakura |
| Alternator | Copper Alternator |
| Th. Class | H |
| Output Frequency Wrap | ±5% |
| Output Voltage Wrap | ±2% |
| Protection System | IP23 |
Dimension and Noise Level:
| Length | 40 Inch |
| Width | 27 Inch |
| Height | 38 Inch |
| Weight | 183 KG |
| Sound From 7 m (dBA) 1/4 load | 74 |
Fuel Consumption:
| 100% Load | 4 L/H |
| 75% Load | 3 L/H |
| 50% Load | 2 L/H |
| Continuous Duration of Runs | 8 H |
Warranty: 1 Year Warranty.
Installation Charge: Free.
Notes: Buyer will bear cable & other accessories costs.
