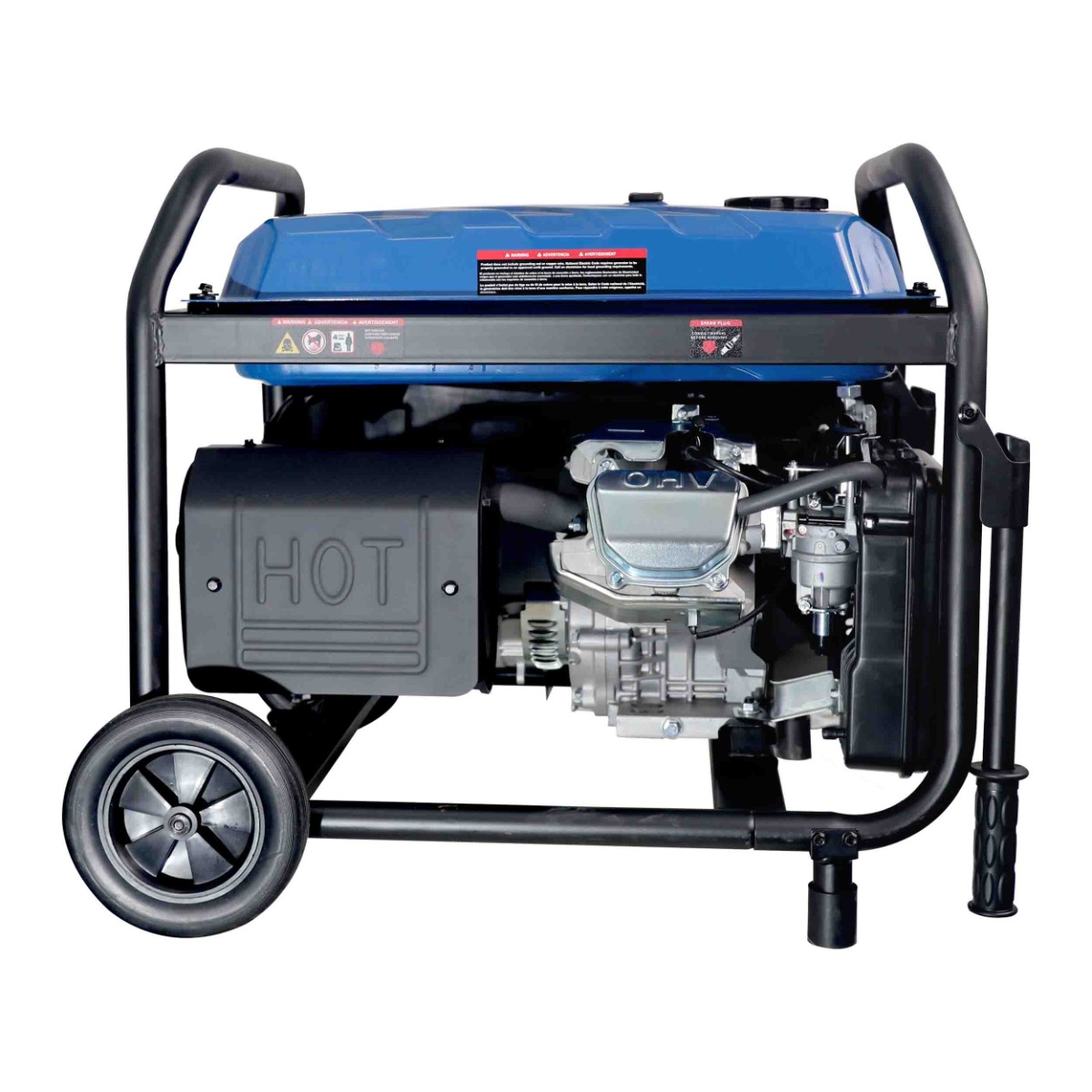

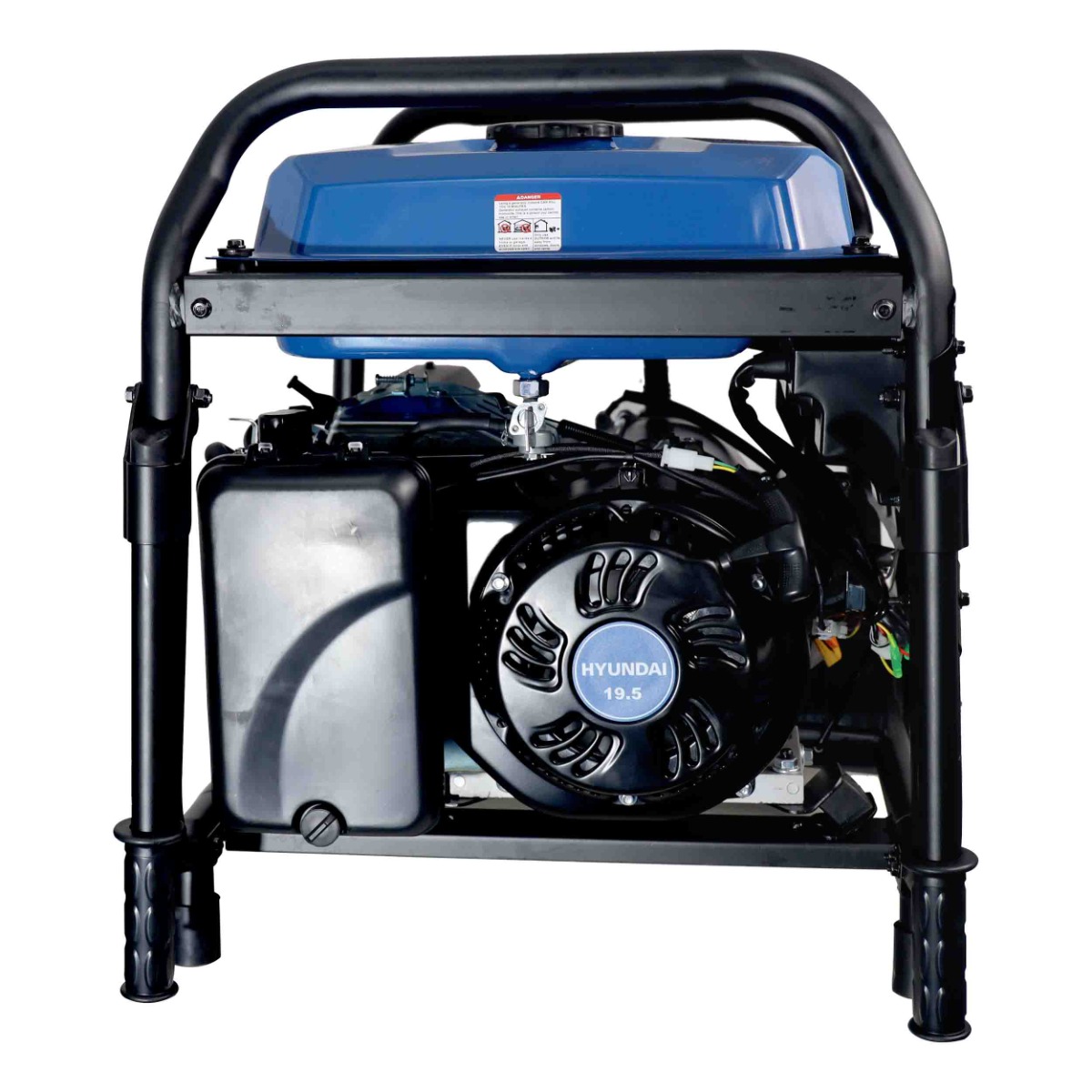

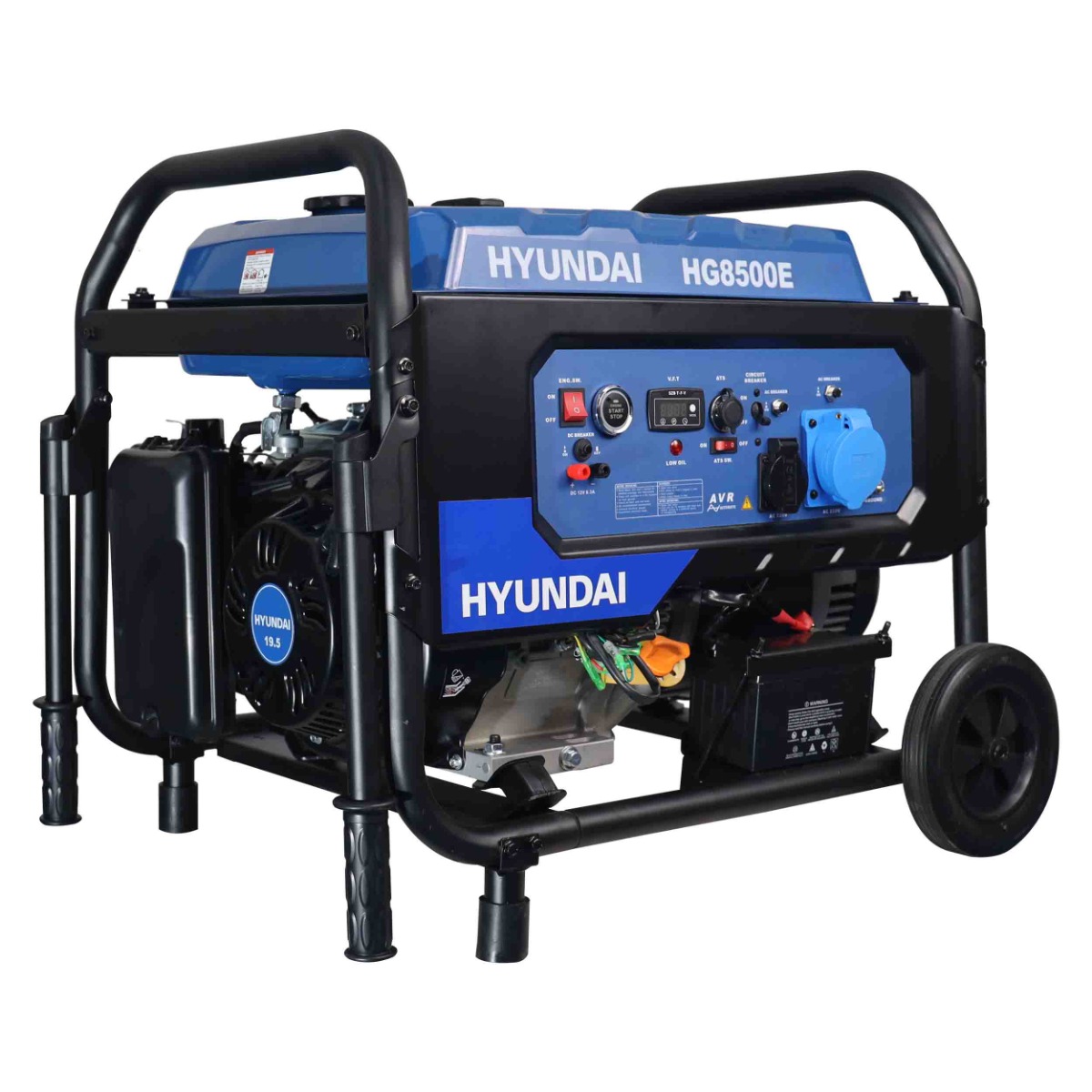

Technical Specification of HYUNDAI HG8500E 8.5 KW Gasoline Generator:
General Data:
| Model | HG8500E |
| Brand | HYUNDAI |
| Rated Power | 8.0 KVA/ 8.0KW |
| Max. Power | 8.5 KVA/ 8.5KW |
| Volts | 220V |
| Frequency | 50HZ |
| Engine RPM | 3000 |
| Power Factor | 1 |
| Max. output (Ampere) | 36.4 A |
| Starting System | One button start, Electric & Recoil |
| Country of Origin | Korea |
| Country of Manufacture | China |
Engine General Data:
| Engine Brand | HYUNDAI |
| Model | H500 |
| Fuel | Petrol/ Octane |
| Fuel Tank Capacity | 27L |
| Cooling System | Air Cooled |
| Displacement/HP | 500ml/ 17HP |
| Ignition System | Transistorized magento |
| Engine Oil Capacity | 1.2L |
| Lube Oil Grade | SF or SG (SAE10E-30) |
Alternator General Data:
| Brand | HYUNDAI |
| Alternator | HYUNDAI |
| Th. Class | H |
| Output Frequency Wrap | ±5% |
| Output Voltage Wrap | ±2% |
Dimension and Noise Level:
| Length | 697 mm |
| Width | 562 mm |
| Height | 577 mm |
| Weight | 96 KG |
| Sound From 7 m (dBA) 1/4 load | 74 |
Fuel Consumption:
| % of Load | Petrol/Octane |
| 100% Load | 3.0 L/H |
| 75% Load | 2.3 L/H |
| 50% Load | 1.5 L/H |
| Continuous Duration of Runs @100% Load | 6H |
| Continuous Duration of Runs @100% Load | 9H |
Warranty and Installation:
1 Year Warranty.
Installation Charge: Free.
Notes: Cable & other accessories costs will bear by the buyer.
