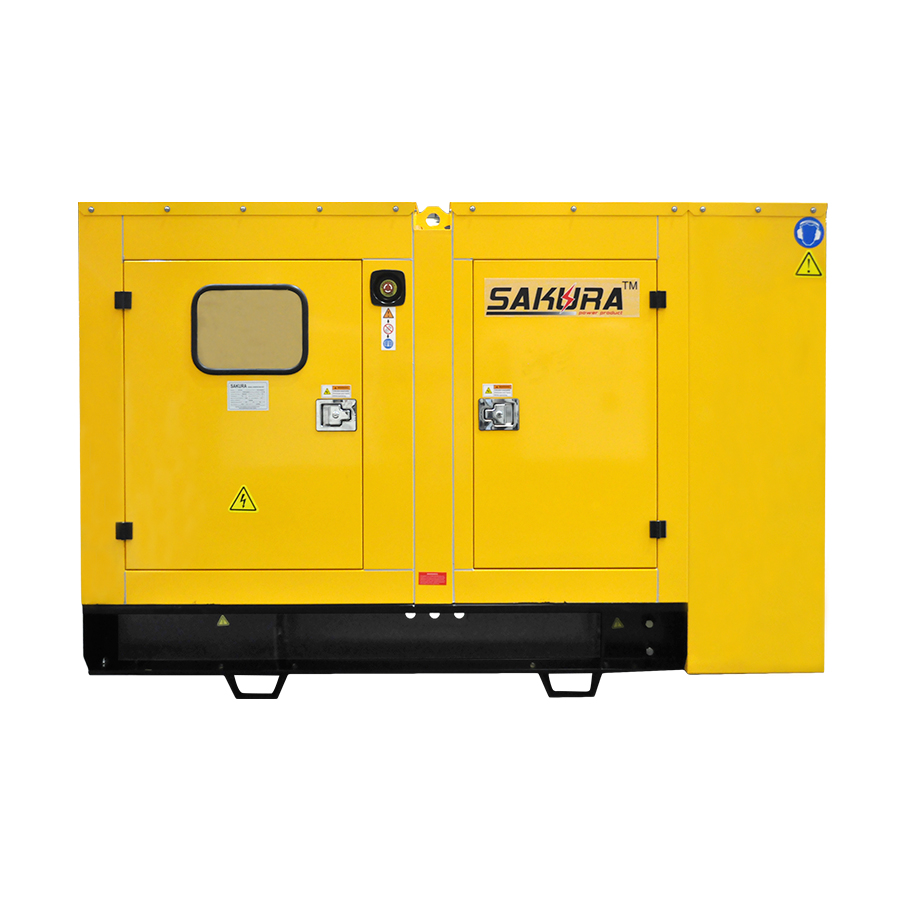

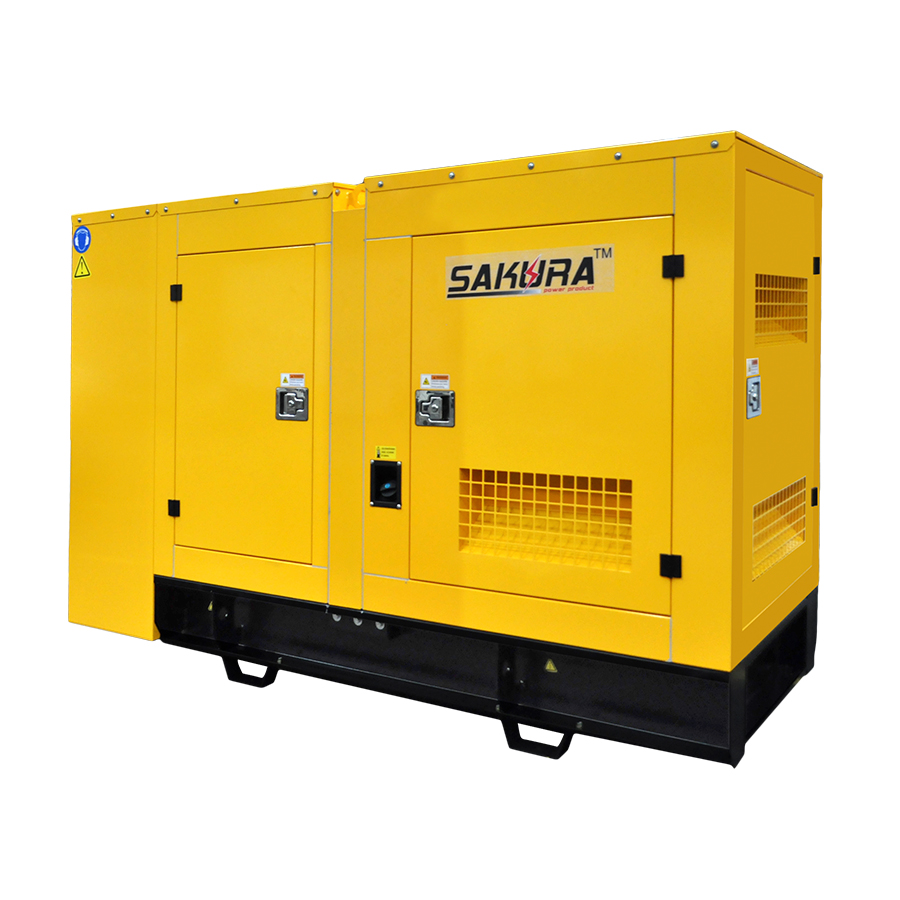

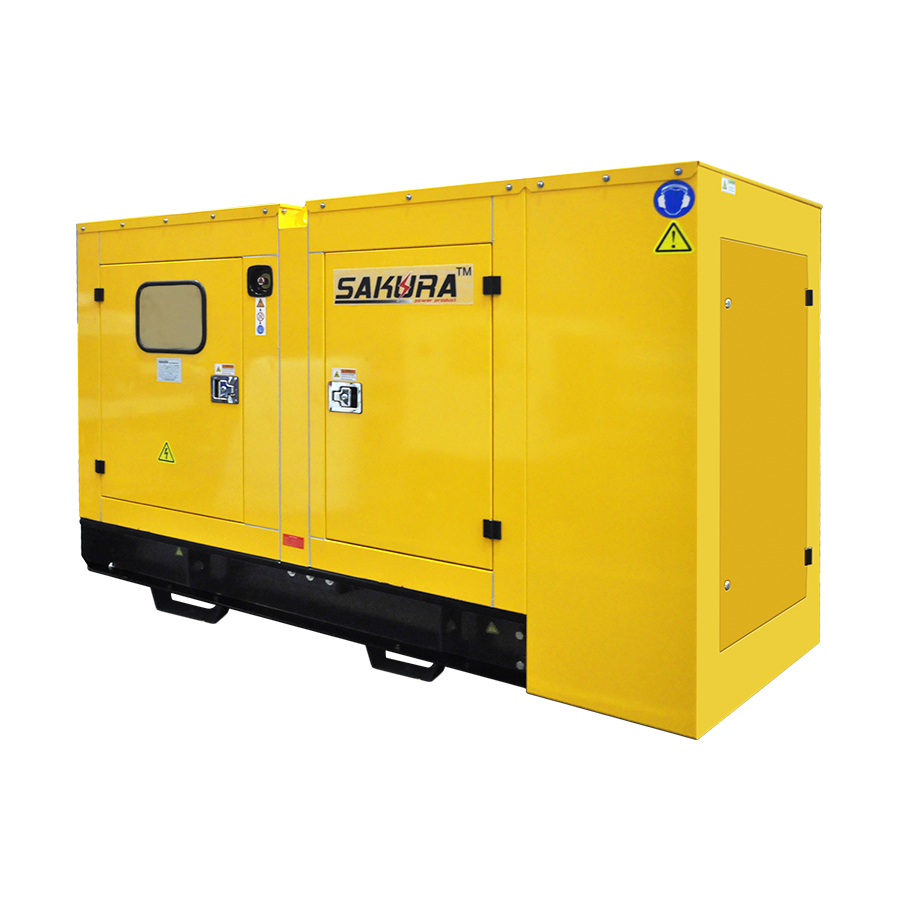

Technical Specification:
General Data:
| Model | SP110SC |
| Brand | Sakura |
| Continuous Power | 100 KVA |
| Continuous Power | 80 KW |
| Standby Power | 110 KVA |
| Standby Power | 88 KW |
| Volts | 220V / 380V |
| Frequency | 50HZ |
| Number of Phase | 3 |
| Engine RPM | 1500 |
| Power Factor | 0.8 |
Engine General Data:
| Engine Brand | SDEC |
| Model | SC4H140D2 |
| Fuel | Diesel |
| Number of Cylinders | 4 |
| Fuel Tank Capacity | 100L |
| Cooling System | Water Cooled |
Alternator General Data:
| Brand | SAKURA |
| Type | Brushless |
| Model | SA224G100 |
| Th. Class | H |
Dimension and Noise Level:
| Length | 240 cm |
| Width | 90 cm |
| Height | 140 cm |
| Weight | 1629 KG |
| Sound From 7 mt | 70 dBA |
Fuel Consumption:
| 50% Load | 11.8 L/H |
| 75% Load | 17.1 L/H |
| 100% Load | 22.6 L/H |
Useable applications: Building and workplace, data center, factories, commercial center, Industrial power backup use
Engine: SDEC SC4H140D2 more power output than competing products with close displacement, the power of the 3‐cylinder engine can reach the same level as 4‐cylinder ones of competitor
Power: Prime power 100 KVA/ 80KW, Standby power 110 KVA/ 88KW
Alternator: SAKURA, SA224G100, IP23, H insulation class alternator
Starting System: Electronic starting system
Fuel Type: Diesel
Noise level: In the distance of 7 miters the operating noise level will be 70 dBA
Running Hours: 8 hours
Warranty:
Warranty Information:
1 Year Warranty.
Installation Charge: Free.
Notes: Cable & other accessories costs will bear by the buyer.
