Technical Specification:
General Data:

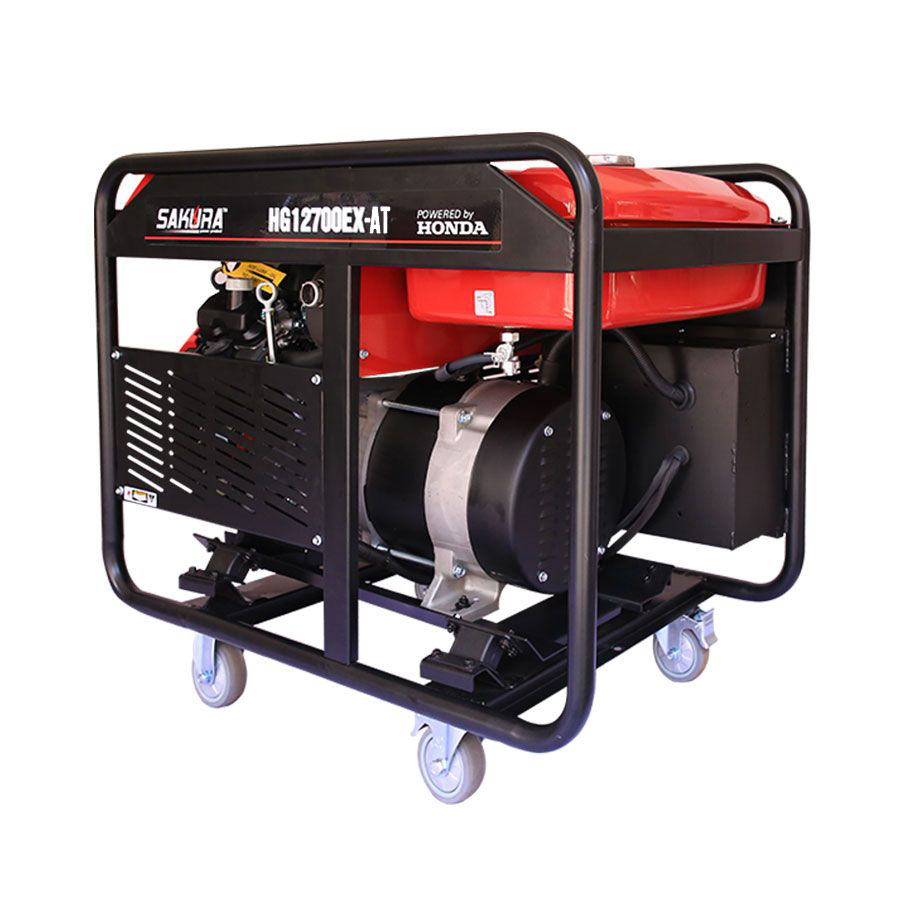

| Model | HG12700EX-AT |
| Brand | Sakura |
| Rated Power | 10 KVA/10 KW |
| Max. Power | 11 kVA/11 KW |
| Volts | 220V |
| Frequency | 50HZ |
| Engine RPM | 3600 |
| Power Factor | 1 |
| Max. output (Ampere) | 50A |
| Starting System | Automatic Start with ATS, Electric |
| Country of Made | China |
Engine General Data:

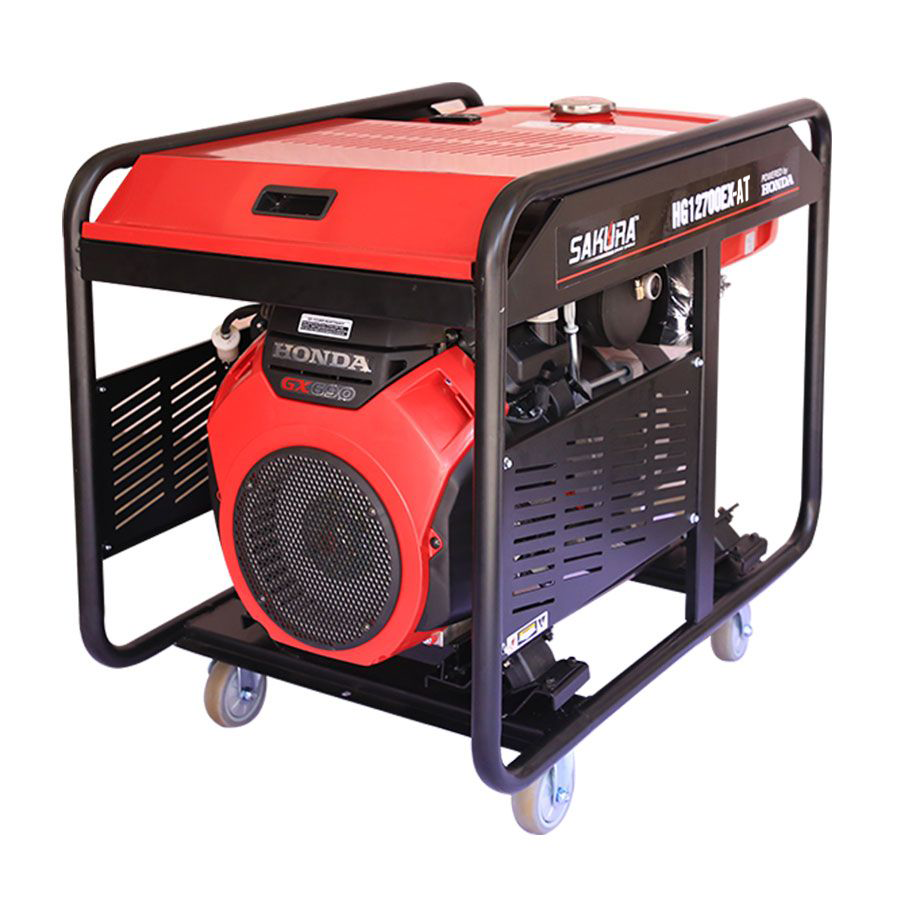

| Engine Brand | Honda |
| Model | GX690 |
| Fuel | Petrol/Octane |
| Fuel Tank Capacity | 30L |
| Cooling System | Air Cooled |
| Displacement/HP | 724cc/24 |
| Ignition System | Non Contact |
| Engine Oil Capacity | 2 L |
| Lube Oil Grade | SAE 20W-50 |
Alternator General Data:
| Brand | Sakura |
| Alternator | Copper Alternator |
| Th. Class | H |
| Output Frequency Wrap | ±5% |
| Output Voltage Wrap | ±2% |
Dimension and Noise Level:
| Length | 740 mm |
| Width | 620 mm |
| Height | 800 mm |
| Weight | 180 KG |
| Sound From 7 m (dBA) 1/4 load | 80 |
Fuel Consumption:
| 100% Load | 4 L/H |
| 75% Load | 3 L/H |
| 50% Load | 2.1 L/H |
| Continuous Duration of Runs | 6 H |
10KVA Generator Price in Bangladesh
Warranty: 1 Year.
Installation Charge: Free.
