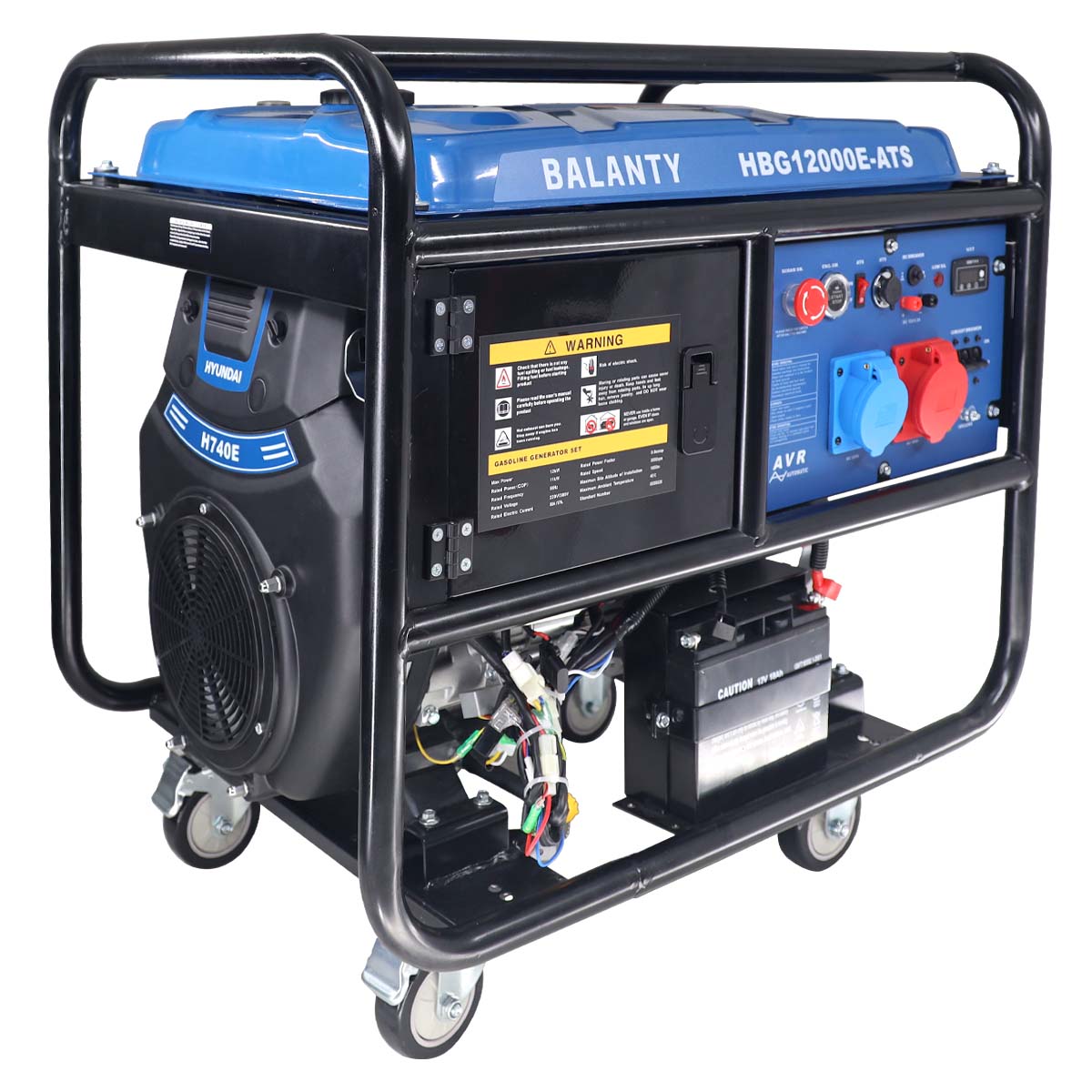

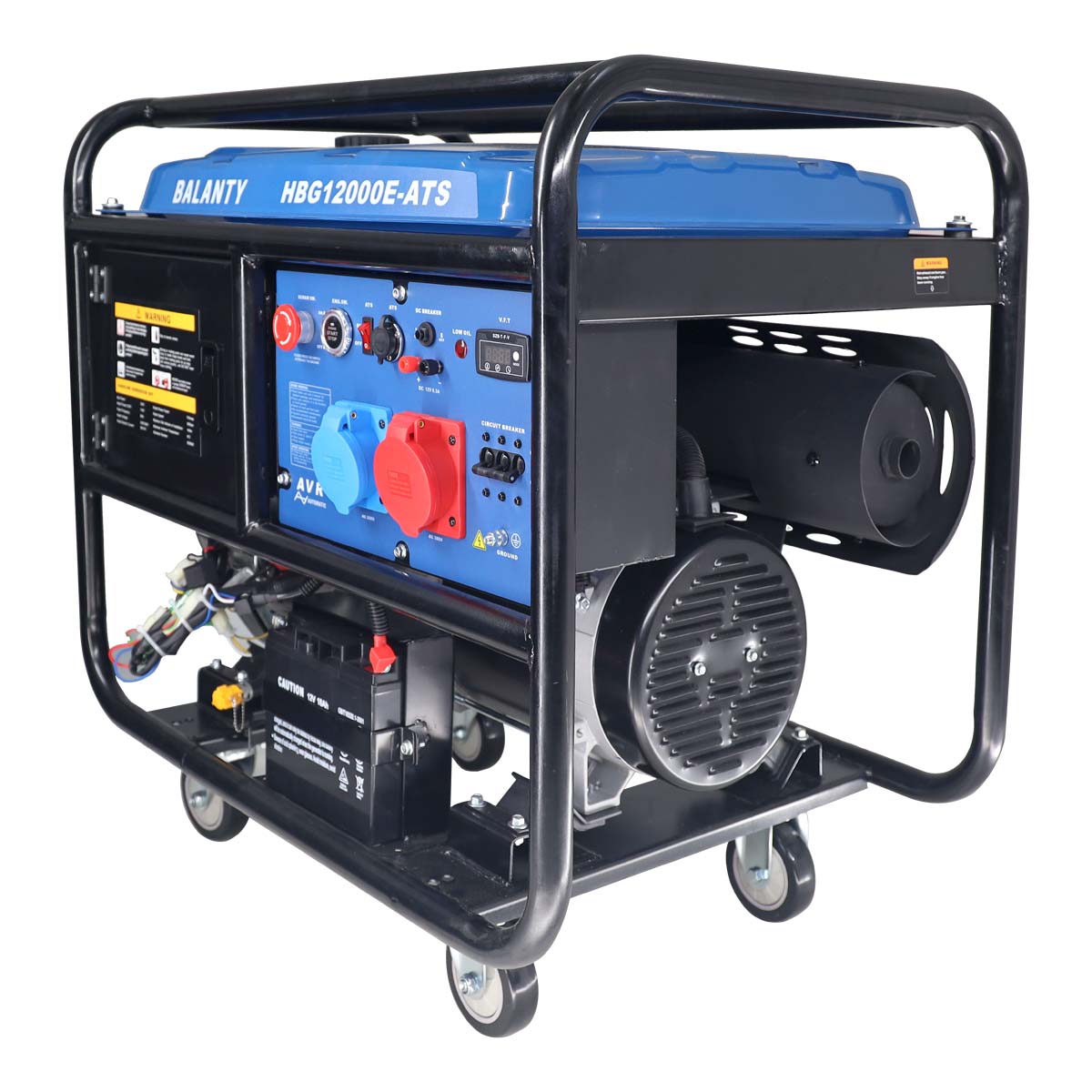

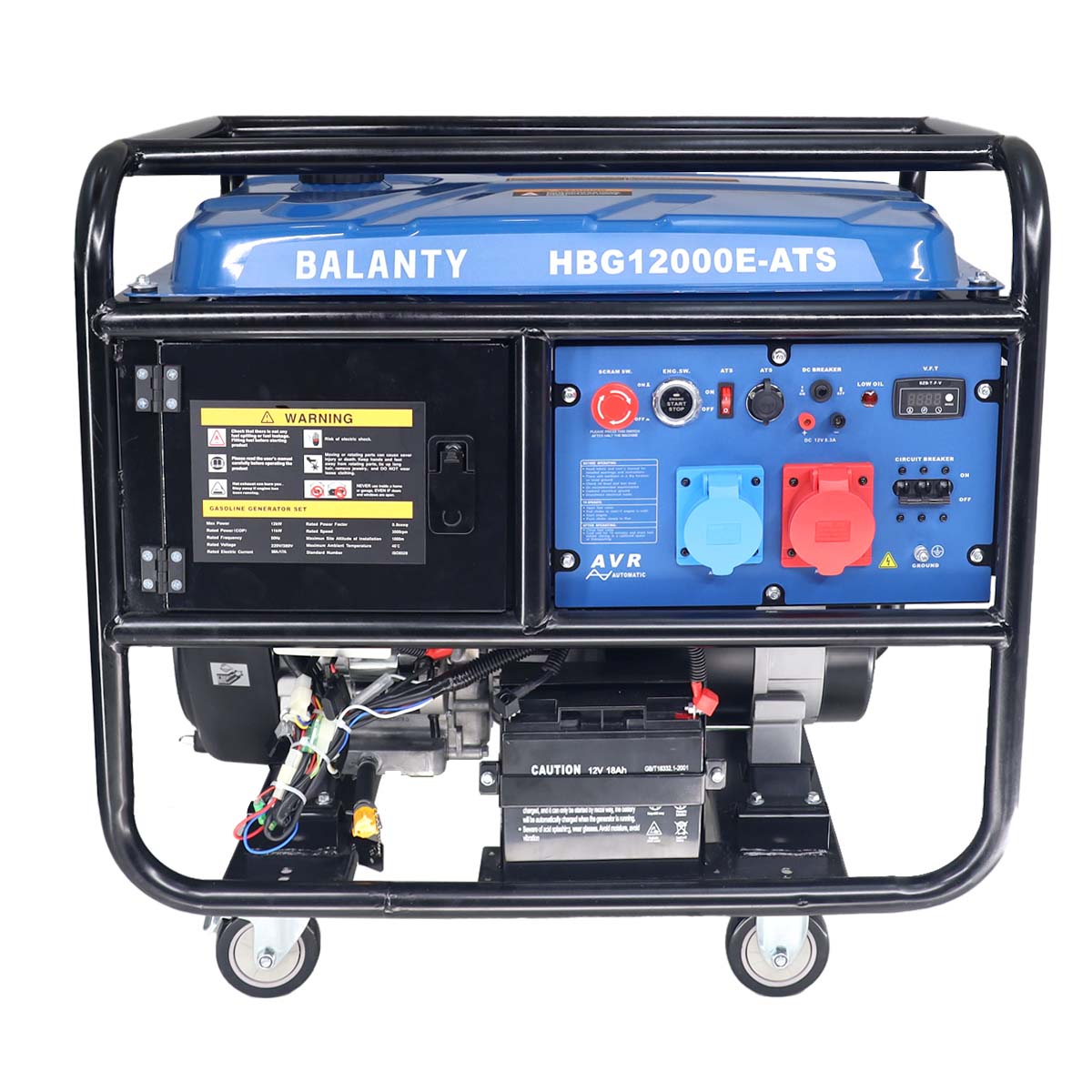

Technical Specification of HYUNDAI HBG12000E-ATS 12 KW Gasoline Generator:
General Data:
| Model | HBG12000E-ATS |
| Brand | Balanty powerd by Hyundai |
| Rated Power | 11.0 KVA/ 11.0KW |
| Max. Power | 12 kVA/ 12KW |
| Volts | 220 /380 V |
| Phase | Single / Three |
| Frequency | 50HZ |
| Engine RPM | 3000 |
| Power Factor | 1 |
| Max. output (Ampere) | 54 A |
| Starting System | One button start & ATS |
| Country of Origin | Korea |
| Country of Manufacture | China |
Engine General Data:
| Engine Brand | HYUNDAI |
| Model | H740E |
| No. of cylinder | 2-Cylinder, V-type |
| Fuel | Petrol/ Octane |
| Fuel Tank Capacity | 30L |
| Cooling System | Forced Air Cooled |
| Displacement | 739cc |
| Ignition System | Transistorized magento |
| Engine Oil Capacity | 1.6L |
| Lube Oil Grade | SJ 10W-30 |
Alternator General Data:
| Brand | HYUNDAI |
| Alternator | HYUNDAI |
| Th. Class | F |
| Output Frequency Wrap | ±5% |
| Output Voltage Wrap | ±2% |
Dimension and Noise Level:
| Length | 820 mm |
| Width | 595 mm |
| Height | 682 mm |
| Weight | 152 KG |
| Sound From 7 m (dBA) 1/4 load | 80 |
Fuel Consumption:
| % of Load | Petrol/Octane |
| 100% Load | 5.5 L/H |
| 75% Load | 4.0 L/H |
| 50% Load | 3.0 L/H |
| Continuous Duration of Run | 8 H |
Warranty and Installation:
1 Year Warranty.
Installation Charge: Free.
Notes: Cable & other accessories costs will bear by the buyer.
