Technical Specification:
General Data:

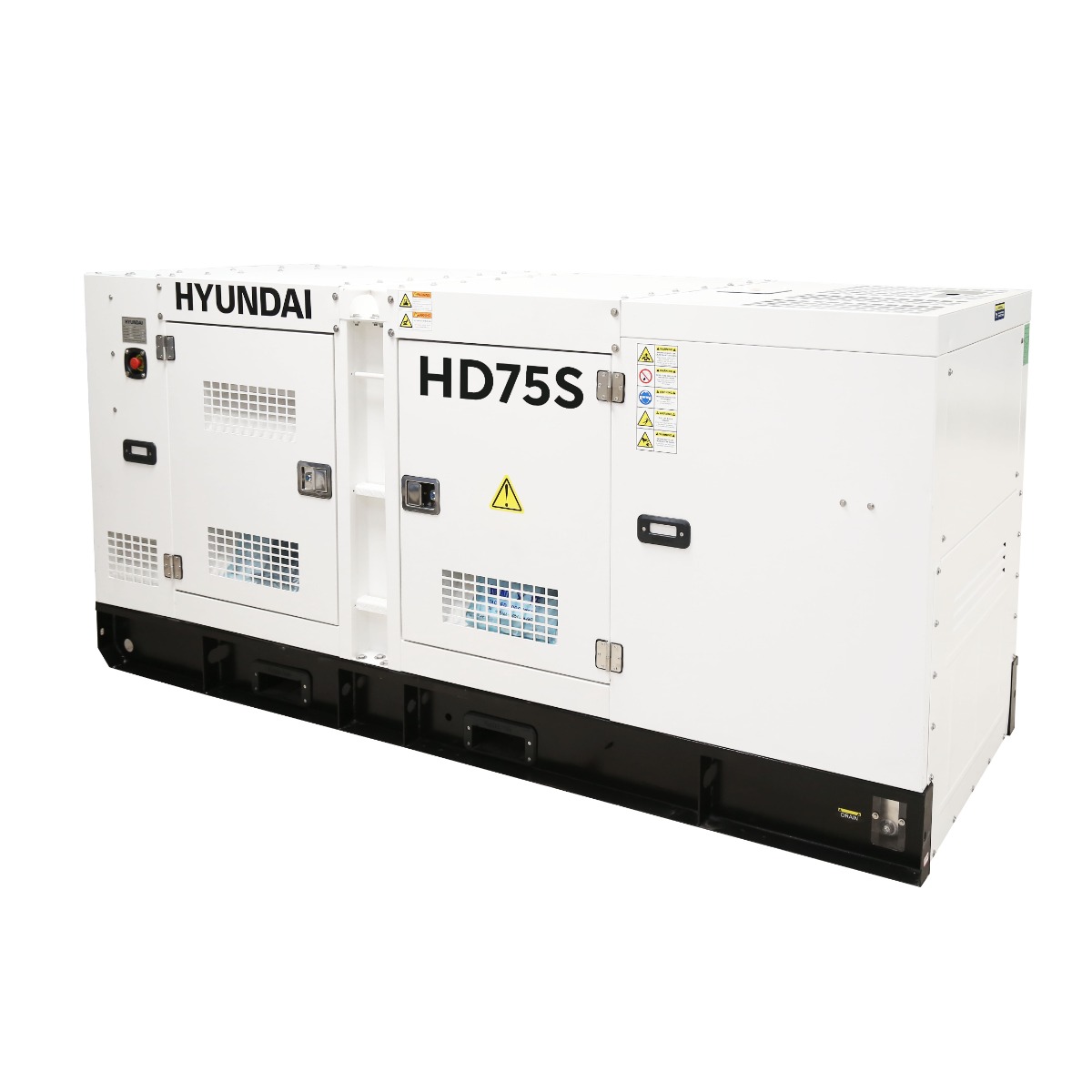

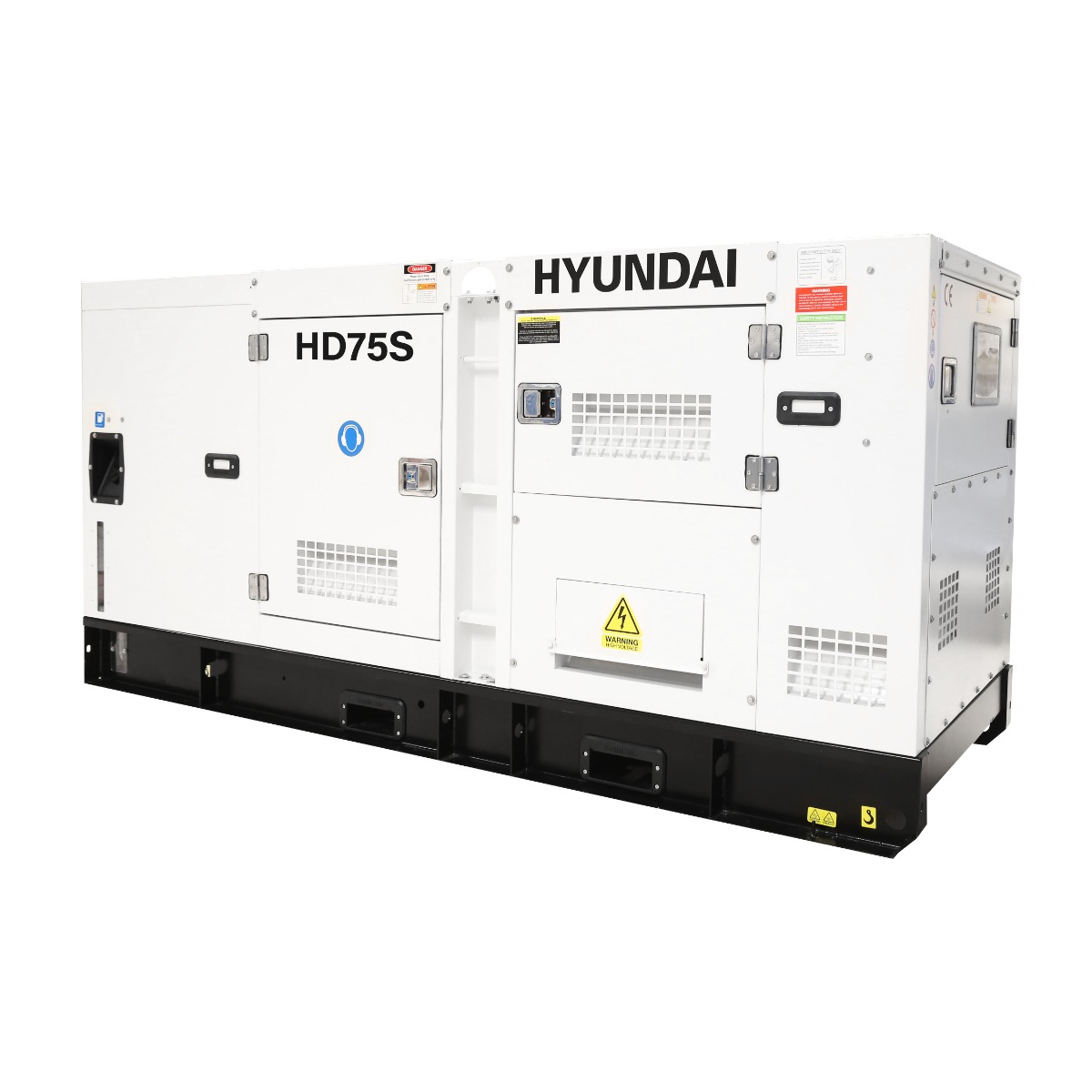

| Model | HD75S |
| Brand | HYUNDAI |
| Continuous Power | 69 KVA |
| Continuous Power | 55 KW |
| Standby Power | 75 KVA |
| Standby Power | 60 KW |
| Current | 99.2 A |
| Volts | 220V / 380V |
| Frequency | 50HZ |
| Number of Phases | 3 |
| Engine RPM | 1500 |
| Power Factor | 0.8 |
| Origin | Korea |
| Country of Made | China |
Engine General Data:
| Engine Brand | FAWDE |
| Model | 4110-125Z-09D-YFD10W |
| Fuel | Diesel |
| Number of Cylinders | 4 |
| Fuel Tank Capacity | 165 L |
| Cooling System | Water Cooled |
Alternator General Data:
| Brand | HYUNDAI |
| Type | Brushless |
| Model | HK224F |
| Th. Class | H |
| Protection | IP23 |
Controller:
| Brand | DeepSea |
| Model | DSE 6120 |
| Circuit Braker | Delixi |
Dimension and Noise Level:
| Length | 2770 mm / 9.1 ft |
| Width | 1080 mm / 3.5 ft |
| Height | 1258 mm / 4.1 ft |
| Weight | 1442 KG |
| Sound From 7 mt | 68 dBA |
Fuel Consumption:
| 50% Load | 8.25 L/H |
| 75% Load | 12.37 L/H |
| 100% Load | 16.5 L/H |
General Features:
Silent generator with the following specifications:
Canopy: Foreign Canopy
- Large doors for easy access to service and maintenance
- Metalsheed Cut using high-precision laser technology
- Weatherproof sealed joints
- Powder coating paint for more durability
- Heavy-duty fabricated welded base plate with high quality.
- Heavy-duty rubber anti-vibration mountings
Control Panel: DEEPSEA DSE6120:
- Low oil pressure
Meets all requirements for Auto Mains Failure (AMF) Current applications. Volts- Automatic SMS on alarm or any function Frequency
- Running hours’ event and performance log Engine RPM
- Plug-in extension modules capability
- 3-phase power measurement etc.
Battery:
- Varta Battery. 100% Maintenance Free Battery
HYUNDAI Diesel Generator utilizes a VARTA (German-originated) battery, renowned for its exceptional reliability and performance. VARTA batteries are known for their long lifespan, high power output, and superior start-up capabilities, ensuring the generator starts quickly and operates efficiently. These batteries are built with advanced technology to provide consistent power, low self-discharge rates, and minimal maintenance. Their robust design and construction make them highly resistant to vibration and extreme temperatures, ideal for demanding applications. VARTA's reputation for quality and durability makes it a trusted choice for powering critical systems in the HYUNDAI Diesel Generator.
Warranty:
Warranty Information:
1 Year Warranty.
Installation Charge: Free.
Notes: Cable & other accessories costs will bear by the buyer.
