250A 4 pole Automatic Transfer Switch-ATS | Best ATS Price in Bangladesh
Reliable Performance:

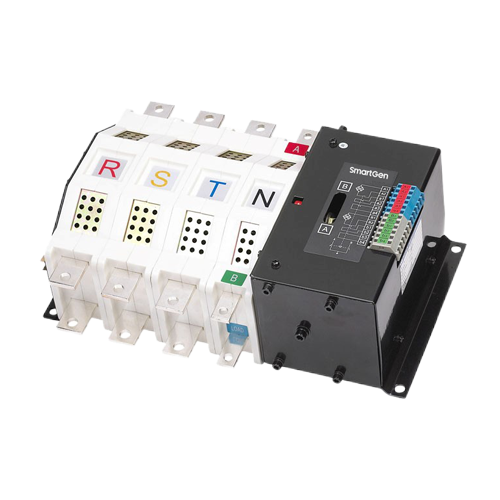

ATS250A-4P automatic transfer switch helps the generator to smooth, reliable performance and long service life. Used in generator power output range 81kVA to 110kVA.
High Temperature Resistance:
The switch's exterior casing is composed of flame retardant material that is heat resistant, does not distort easily, and is safer to use.
Fast Switching:
This automatic transfer switch gives sensitive response, and fast switching of power supply. It can perform two-way power supply load transfer in under 80 milliseconds.
Noise-free Operation:
The Automatic Transfer Switch (ATS) gives the generator noise-free simple operation, convenient installation and stable performance.
Easy to Install:
It has rail-mounted installation, simple and convenient, effectively protect your electricity safety and stability.
Technical Specification:
Model | ATS-250A-4P |
Brand | Sakura, Powered By SmartGen |
Rated Current | 125A |
Rated Limited Short-Circuit Current | 35KA |
Coil Operating Voltage | 220V |
Coil Operating Current | 3.5A |
Operation Cycle | 15 Seconds/time |
Mechanical Operation Time | 10000 Times |
Electrical Operation Time | 4000 Times |
Net Weight | 5.5 KG |
Country of Made | China |
Warranty and Installation:
1 Year Warranty.
Free delivery and installation (with SAKURA generator)
Notes: Buyer will bear cable & other accessories costs.
Warranty policy: https://www.sakurapower.com/warranty-policy
